Projects

PII Montecity Rogoredo Development

Year 2018 - Ongoing

Location Milan, Italy

Client Milano Santa Giulia S.p.a.

Area | Visitors | Height 400,000 mq GFA including 70,000 mq retail area - Arena for 16,000 users - 360,000 sqm of green areas

Industry Mixed-Use Developments, Shopping Centres, Stadiums and Sport Events, Transport Infrastructure, Urban and City Districts Regeneration (Major real-estate developments, Mixed-Use Developments, Shopping Centres, Stadiums)

Expertise Traffic Impact Studies, Transport Infrastructure Planning, Development Access and Mobility Studies

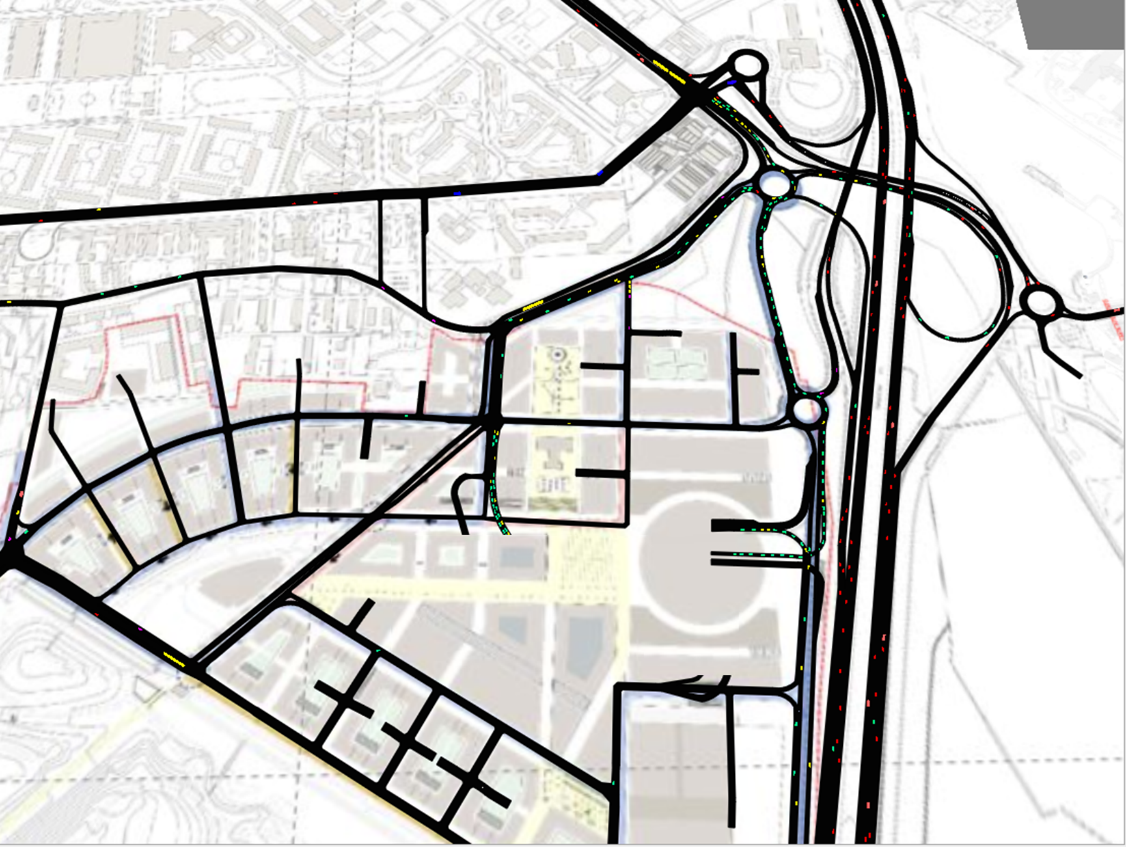

Project road network

Located on the east side of Milano, near the Linate Airport and Rogoredo station, the regeneration project consists of the construction of over 400,000 sqm of mixed-use functions, including residences (more than 220,000 sqm), offices and retail areas, a public park of over 330,000 sqm and the Pala Italia Arena, the future hockey facility for the Milano Cortina 2026 Olympic Winter Games.

Systematica has carried out an integrated and comprehensive mobility masterplan, including a vehicular accessibility system, parking dimensioning, and public and soft transport strategies, in which it tested different alternatives through static and dynamic traffic simulations at different scales.

Dynamic microsimulation model – snapshot of peak hour simulation

Dynamic microsimulation model – flowchart

      The main infrastructural provisions introduced by the project are the following: a new tram line connecting the M3 Rogoredo Station to the future M4 Forlanini Quartiere Station, the improvement of the existing Mecenate interchange, and the realization of the Paullese primary road in addition to the new internal network and the articulated parking system.

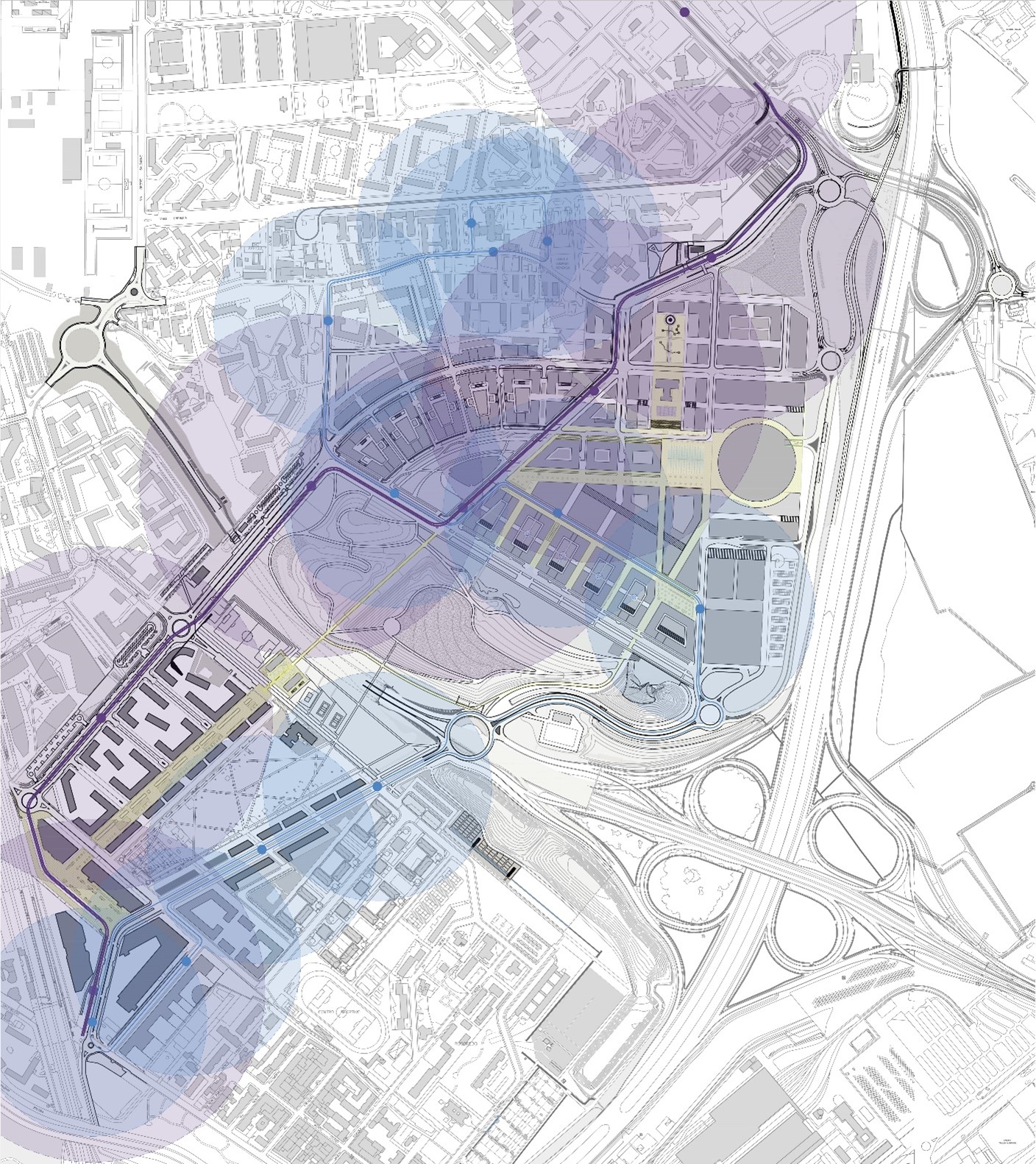

Public transport catchment area and distribution

Public transport accessibility system
